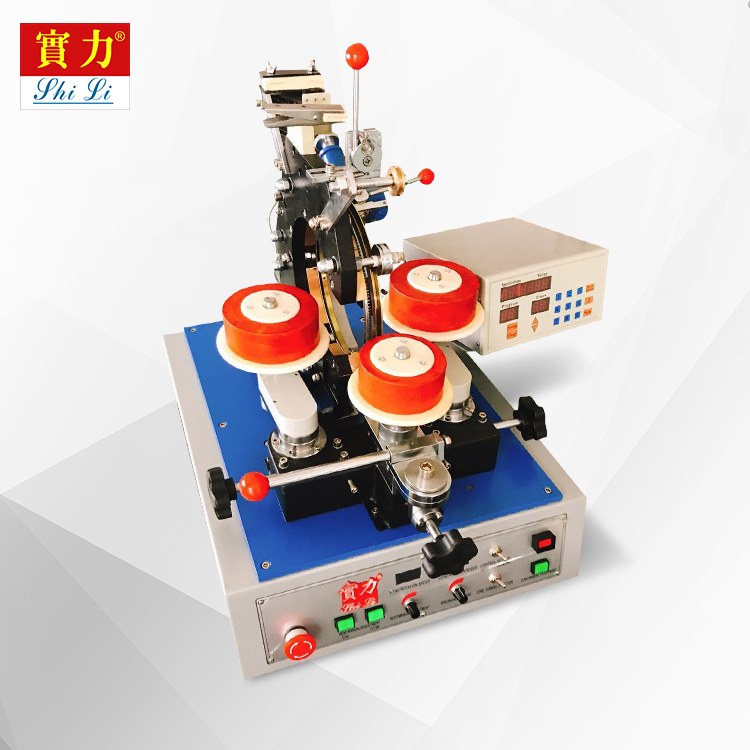

Magnetic automatic winding machine is a new magnetic automatic winding machine, its feeding, into the line, winding, cable to output fully automated, advanced into the line, winding ways and electrical control principle (PLC + touch screen), so that it has other similar products irreplaceable advantages in terms of micro-magnetic coil winding.

The machining of magnetic coils used in network filter, a variety of transformers, inductors patch IC, electronic transformers, which is characterized plus under:

1, automatic feeding: automatic feeders and adjustable feed device to ensure that the automatic feed of different ring;

2, winding fine: the winding diameter in the range of 0.02 ~ 0.50mm;

3, the magnet is small: the magnetic ring outer diameter in the range of about 2.5 ~ 40mm, an inner diameter of the magnet is not less than 1.0mm, the magnet thickness not less than 0.8mm;

4, mature Controller: the use of advanced PLC programmable logic controller, while ensuring the stability of the safety of the machine, run;

5, HMI: We applied the LCD touch screen, according to different magnetic and different winding way to easily programmed to facilitate commissioning;

6, circle the number of the magnetic loop: This machine uses fiber optic sensing counter, so that the winding number is accurate circle

7, cable mode: This machine adopts precision stepper motor and its driver, guaranteed the quality of coil arrangement fordistribution;

8, winding way: according to the requirements of different magnetic coils wound around a single way, and around, mixed around, will be around the corner, such as diversification, meet the requirements of different products;

9, high efficiency: a basic equipment can replace 10employees of human labor;

10, high productivity: according to the outer diameter of 20mm, inner diameter of 14mm, thickness of 5mm ring around a 0.10mm enameled wire around 1999 laps calculate hourly capacity of about 60pcs, working 20 hours a day by calculating, Nissan 1200pcs so, according to 25 days per month, can produce about 30000pcs (The machine uses the full import of high rigidity materials, 24 hours of continuous operation);

11, low power consumption: the whole power consumption does not exceed 750W;

12, environmental protection type: the production of low noise, no pollution of the environment.
